How To Understand Waterproof Of LED strip Light

LED light strip IP65 waterproof: usually also called surface glue waterproof light bar, currently it is made of epoxy resin glue and PU glue. Put the LED light bar flat on the dripping glue table, fix the LED light bar with double-sided adhesive on the back, and then drip a layer of glue on the surface of the LED light bar to make the surface waterproof.

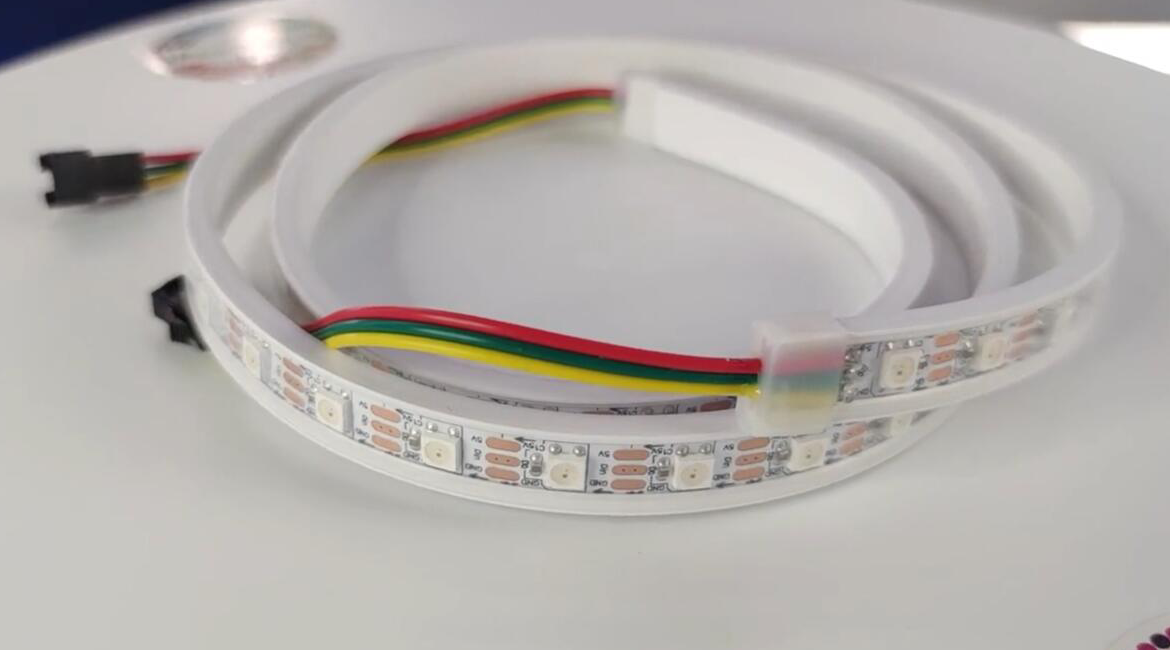

LED light strip IP66 waterproof: usually also called hollow full-sleeve waterproof light bar, the commonly used casings are silicone full-sleeve and PVC full-sleeve.

LED light strip IP67 waterproof: usually also called half-sleeve glue dripping waterproof or half-sleeve glue-filling waterproof, that is, the bottom is covered with a half-sleeve, and then treated with glue-dropping or glue-filling.

 LED light strip IP68 waterproof: usually called full-sleeve glue-filled waterproof or full-sleeve glue-pumped waterproof, which is the highest waterproof level among LED light strips at present, and can be used completely in water.

Glue dropping is the last process in the light bar, and it is also an important process. If the glue is not selected or dripped properly, the entire light bar will be scrapped.

Modified LED strip glue is a kind of two-component modified resin, which is cured at room temperature. It does not contain any solvents and volatiles, and the cured product has excellent yellowing resistance, low temperature resistance and weather resistance, and can be used outdoors for a long time. It is a new type of adhesive developed by chemical engineers who have been working on the front line for a long time after thousands of experiments. All raw materials and products are managed by electronic labels. The server collects real-time data from electronic scales in real time. Each batch of products has video data , successfully solved the traceability problem of chemical liquid products in the industry, laid a solid foundation for quality management, and provided a guarantee for stable quality. It solved the yellowing, corrosion, and weather resistance of epoxy resin; polyurethane Cost-effective and allergenic properties.

Modified lamp strip glue has good performance of PU, anti-allergic, waterproof, soft, good toughness, high transparency, good adhesion, good weather resistance, no corrosion

Specification Option

According to the LED specifications: divided into 3528LED waterproof light strip, 5050LED waterproof light strip, 335 side light LED waterproof light strip, 3020LED waterproof soft light strip, 0805LED waterproof soft light strip, etc., currently the most commonly used are: 335 light strip, 3528 light strip, 5050 light strip.

According to the number of LED lamp specifications: Meter 30 lamp (3528,5050), meter 48 lamp (5050LED lamp bar), meter 60 lamp (335LED lamp bar, 3528LED lamp bar, 5050LED lamp bar, 3020LED lamp bar), meter 96 lamp (3528), meter 120 lamp (3528LED lamp bar, 3020LED lamp bar, 335LED light bar, 505led light bar), 240 meter light (3528LED light bar).

At present, the board used for led soft light strips is FPC board, which can be divided into single panel and double panel. FPC color is butter, white oil and black oil. Width of 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 15mm and other specifications. At present, there are DC12V and DC24V low-pressure plates for W, and AC110V and AC220V high-pressure plates.

Application

1. Family decoration;

2. Path indication and exterior wall decoration;

3, billboard backlight lighting, advertising signs, channel signal signs, etc.;

4, car chassis decoration, high brake indication, body decoration, interior decoration lighting, etc.;

5. Festival decoration, event venue setting, exhibition venue decoration, pavilion lighting decoration;

6, hotels, KTV and other entertainment place decoration;

7, commercial lighting applications, etc.

Notice

1. SMD soft light strip shall not be stressed during transportation and use;

2. Do not destroy the wiring on the circuit board when assembling and connecting;

3 Avoid soft light strip on the ground drag, so as not to scratch or damage the protective layer;

4. Please pay attention to the correct voltage requirement when energizing the light bar

5. When powering on the lamp, strictly follow the positive and negative polarity of the lamp to avoid damage to the lamp;

6. When the number of lamp strips is large, please ensure that the lamp strips are connected in parallel with the power cable. If the series is too long, the unbalanced voltage drop will cause the brightness of the front two ends of the lamp strips to be different.

7. When installed on metal or other conductive surfaces, there must be an electrical insulation layer to insulate the mounting surface from the lamp strip;

8. Pay attention to ESD protection when installing the soft indicator bar.

9. Since the waterproof glue on the surface of the lamp strip is corrosive, please ensure that the lamp strip is in a normal environment. If the waterproof rubber strip is corroded or damaged due to the mistakes of the engineering party during the installation, our company will not be responsible.

10. After splicing, each interface should pay attention to the waterproof protective layer

11. When replacement and maintenance, be sure to cut off the power supply after maintenance, to prevent short circuit, after troubleshooting to correctly install the components, to ensure that the electrical and structure meet the requirements;

12. If the lamp body and connection should be completely waterproof outside the installation, the lamp should be reinforced at the installation.

Operating environment: Operating temperature: -20 ~ +40; Storage temperature: -30 ~ +60; Working humidity: 30%-85%; Storage humidity: 10%-90%; Storage environment: indoor, ventilated, no corrosive gases in the air.
